Electric installation shop

Electric installation services:

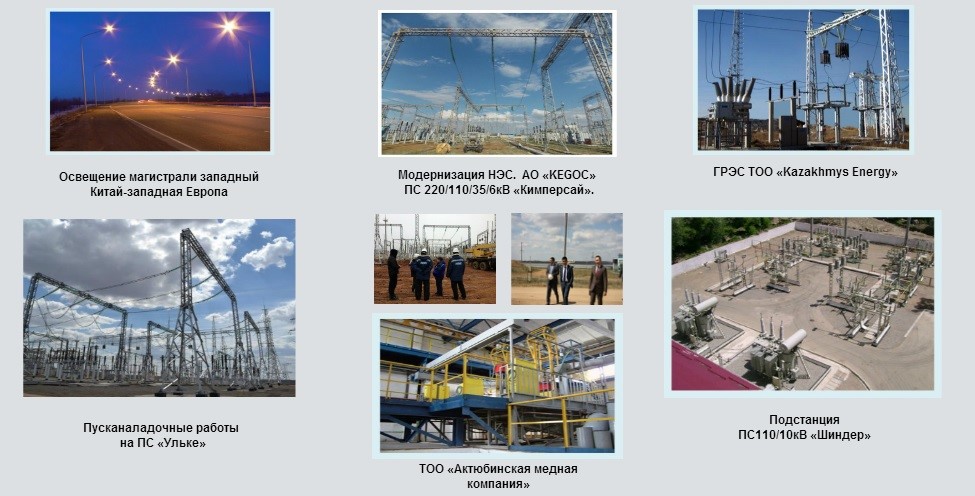

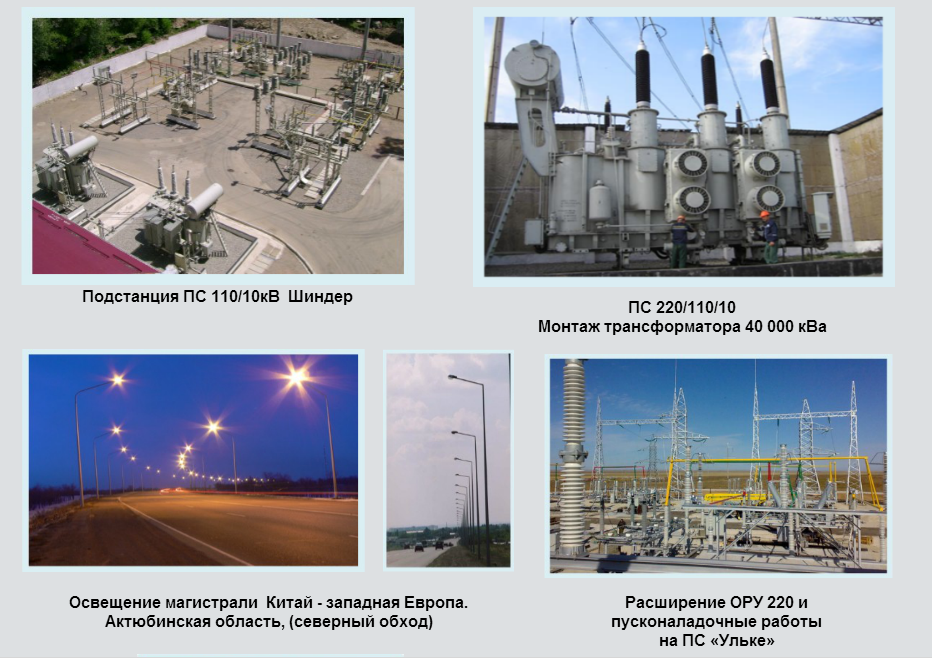

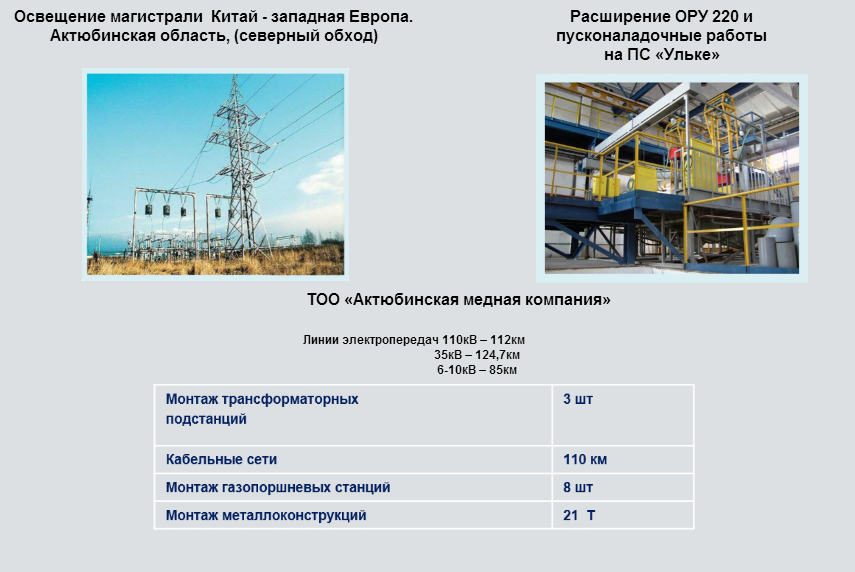

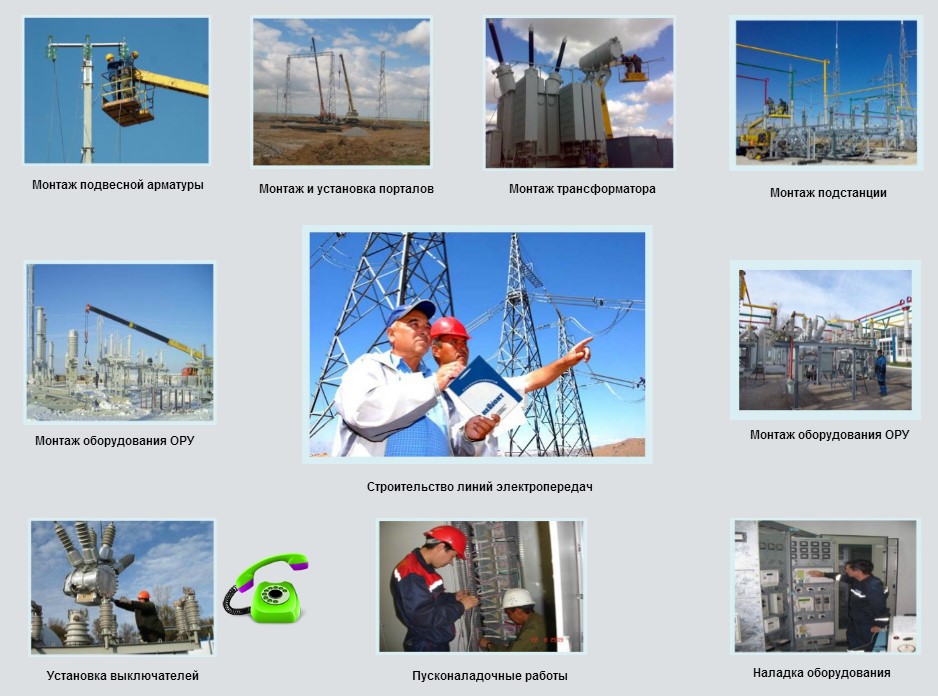

1. Construction and commissioning of overhead line (CL), PS-10-35-110-220 kV of any complexity

2. Installation of electrical equipment:

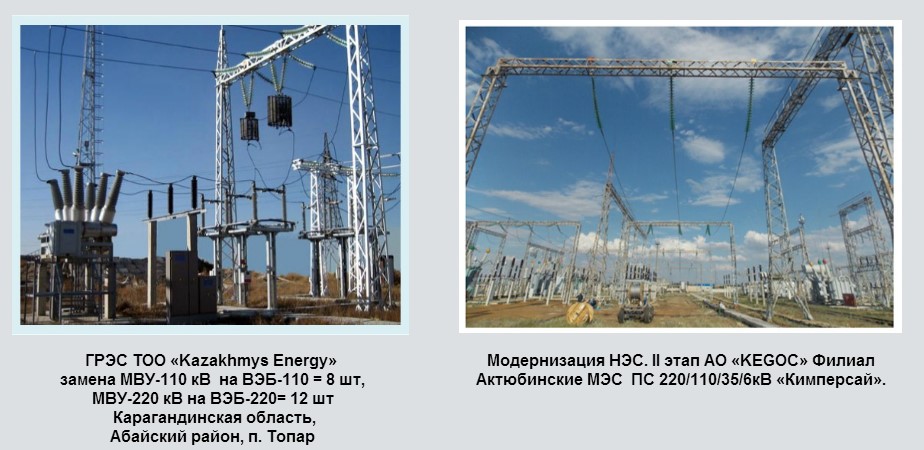

• Gas-insulated switches VEB 35,110,220, gas-insulated current transformers
• TRG-35,110,220kV, gas-insulated voltage transformers ZNG-110. KTPN-6 (10) / 0.4 kV transformers TM, TMG, TSZ - 6 (10) / 0.4, CSGN-6 (10) kV, K-59, CSR-292, low-voltage electrical SCHO-70, PR, protection and automation cabinets, rectifiers, inverters, uninterruptible power supplies, as well as cables and wires of different sections and voltage class.

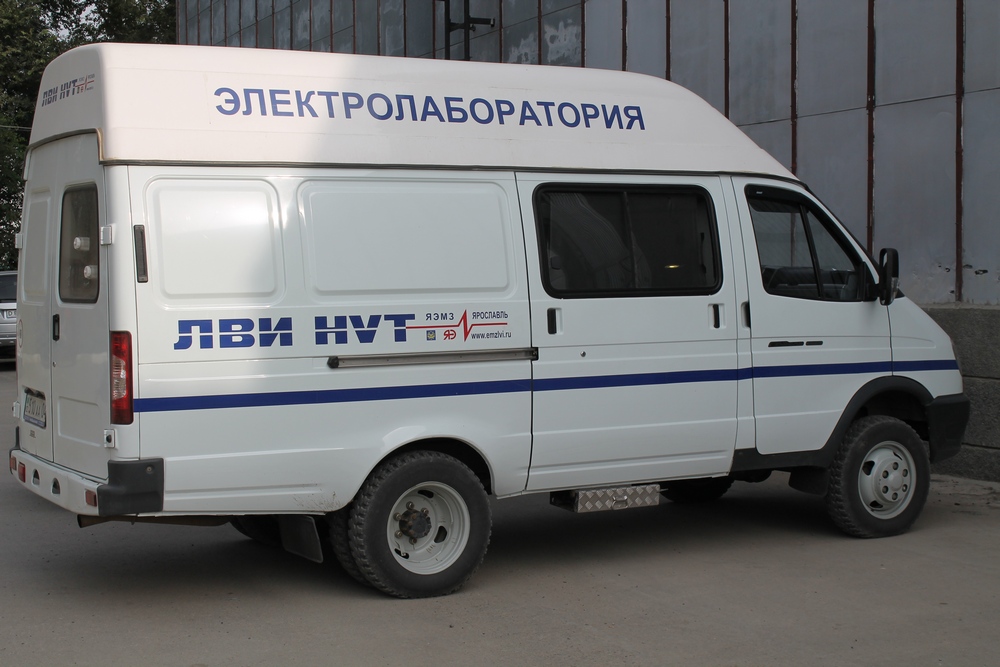

3. Electro-technical laboratory services:

• Cable tracing;
• Fault location in power cable lines;
• Burning of damaged power cable insulation;
• Testing of power cable lines;
• Testing of electrical substations and switchgears;
• Testing of oil transformers;
• Checking of the elements of grounding devices of electrical installations and measurement of resistance of ground loop;
• Measurement of metal-on-metal connection (presence testing of circuit and measurement of transition resistance between grounding of protection conductors);
• Checking the lighting protection;

4. Measurement of resistance of insulation of power and lighting networks:
